PC Board Clone Inspection Issue

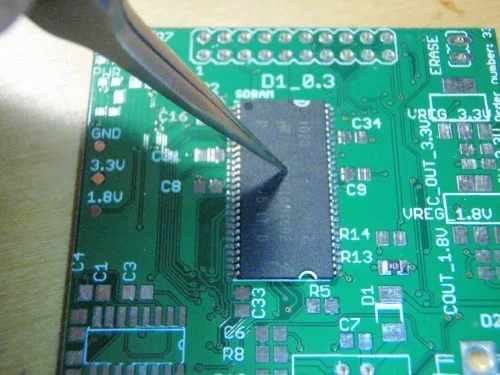

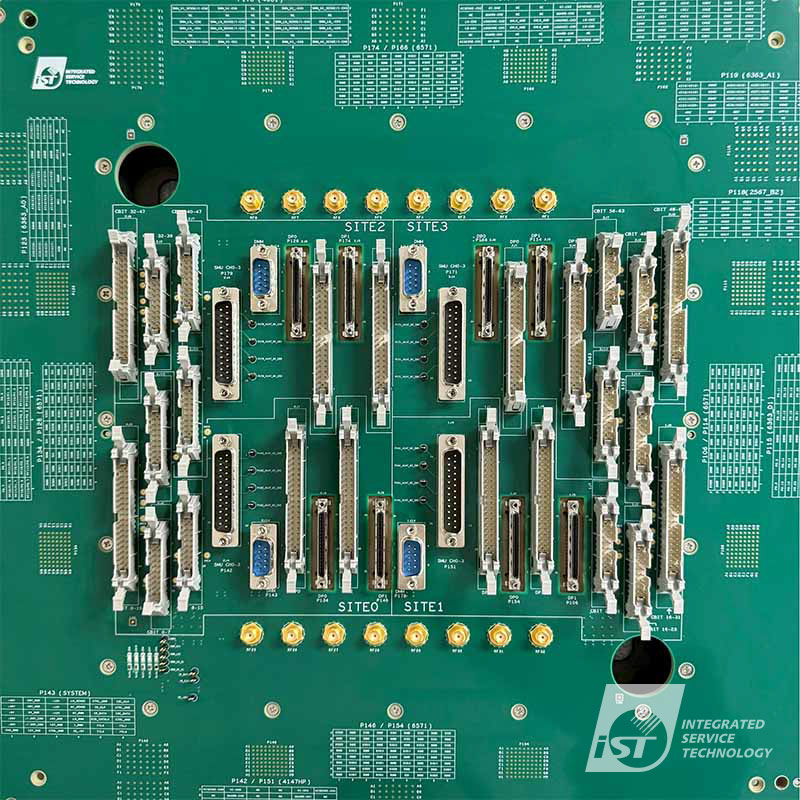

PC Board clone is a complex process during which the time and energy is consuming very fast. In order to prevent any mistakes occurs during this process we need to inspect items refers to the printed circuit board replicating general drawing:

1. If the pc board circuit drawing has been analyzed or not; has it been separated into basic unit for smooth circuit?

2. if the circuit allow to use short or isolated critical lead?

3. those areas which need to be shielded have been shielded effectively?

4. if the basic network grid of pc board has been fully applied or not?

5. if the pc board dimension is optimum?

6. if all the tracks width and space are all chosen?

7. if the PAD dimension and hole dimension have been chosen optimized?

8. if the film image and sketch is properly prepared from PCB board restoration?

9. if the minimum cross line has been applied on pcb board and if all of them need to go through the components or accessory?

10. all the marking on the pc board clone can be seen or not? Are their dimension and part number is correct?

11. if the opening on the large area of copper has been clone on the pc board to prevent the bubble on the solder resist?

12. is there any place for tooling holes?
