IC Chip Circuit Extraction

Circuit Engineering Co., Ltd can provide ic chip circuit extraction service to our valuable customers, high precise circuit extraction process being applied which can greatly secure the accuration of MCU circuitry extraction. In this process, two separate groups of engineers will be involved to extract ic chip from integrated circuit chip. After the ic chip decapsulation finish, electrical rule checking will be applied and make comparison for SVS error recovery, and then proceed to functionality analysis.

Electrical Rule Checking Functions offered by circuit netlist extraction software can inspect most of the circuit extraction errors (such as floating pin, net fails to connect output terminal, net connected multiple output terminals).

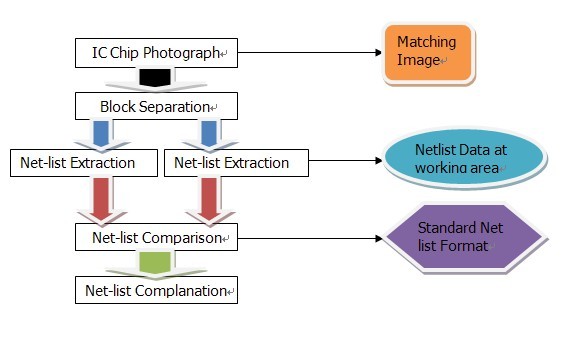

Please view below the working procedures for your reference:
