Barcode Lable Printer Circuit Card Cloning

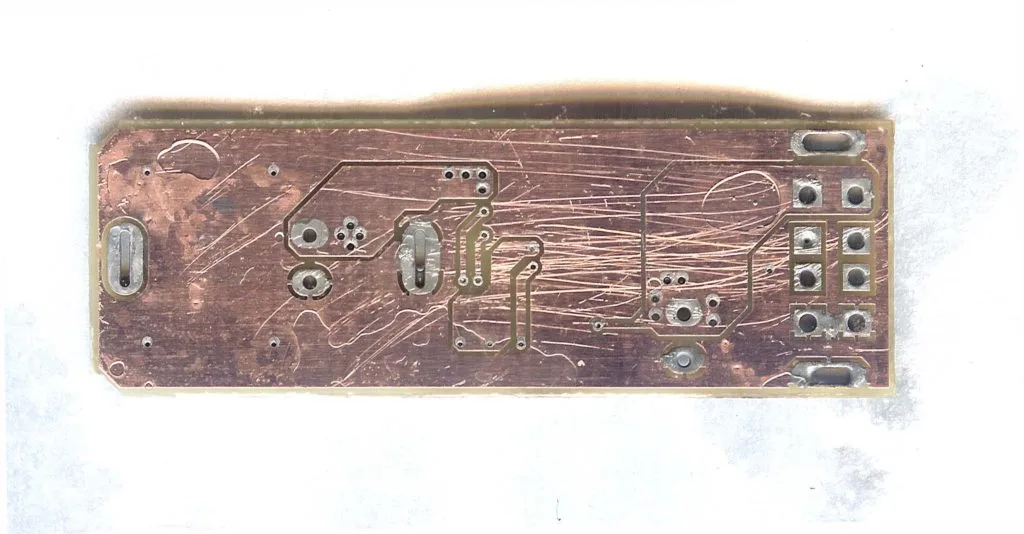

Barcode Lable Printer Circuit Card Cloning can re-manufacture barcode label printer mainboard through extract PCB board documents include CAD file, BOM and Schematic, Gerber file;

After you get started of your Barcode Lable Printer Circuit Card replication project with us, all the necessary files will be submited in below format through which your PCB circuit card of barcode lable printer can be manufacture and assembly anywhere in the world, we can ensure the accuracy of your data by means of prototype running.

Here is sample of files and drawings you will receive, based on a typical 4 layer Barcode Lable Printer PCB copy software with components mounted on two sides:

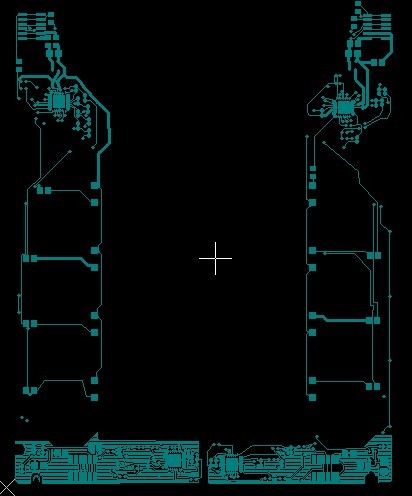

Bottom Layer of Gerber File from Barcode Lable PCB Card Cloning:

1st Mid-Layer of Gerber File from Barcode Lable PCB Board Copying:

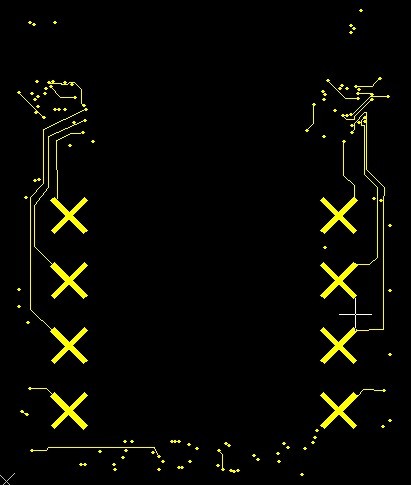

2nd Mid-Layer of Gerber File from Barcode Lable PCB Board reverse engineering:

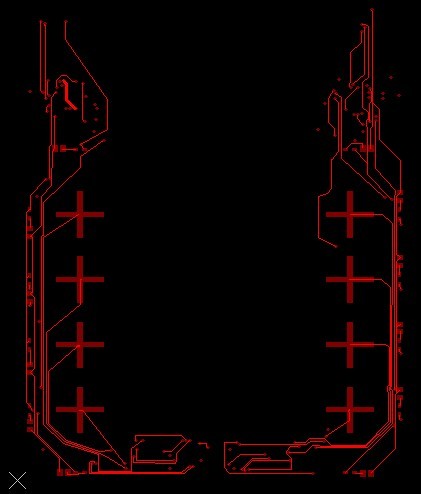

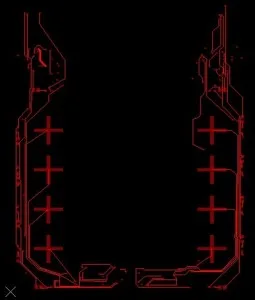

Top Layer of Gerber File from Barcode Lable Printer:

Circuit Engineering Company Limited provide a complete PCB Reverse Engineering, PCB Clone and PCB Restoration service, Rapid Prototyping and functional test services using the latest technologies combined with traditional skills for a wide range of industries. By integrating our traditional skills with the latest technologies, we can offer clients a comprehensive portfolio of product development services all under one roof. For more details please contact our customer
service team.
